WaterHog Diamond Mat
A diamond pattern doesn't change a thing about performance. The genuine WaterHog Diamond was made to be battered the same as the traditional squares pattern. So go head, do your worst.
- WaterHog Diamond mats are durable, stain-resistant mats constructed with a unique bi-level design that effectively scrapes dirt and moisture from shoes, trapping it beneath shoe level to help prevent tracking.
- Their water dam border holds up to 1.5 gallons of moisture, keeping it off your floor.
- WaterHog Diamond mats are made from up to 90% recycled content reclaimed from plastic and feature an attractive diamond-patterned surface.

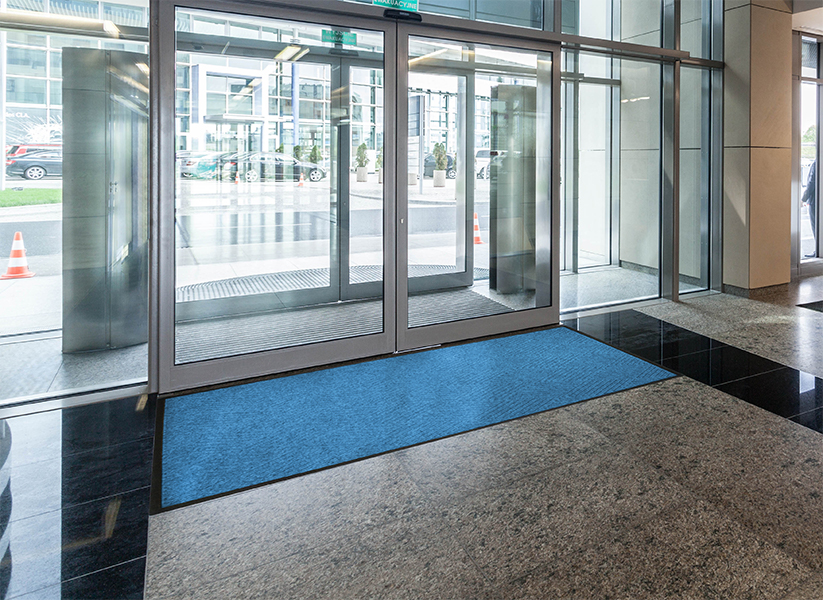

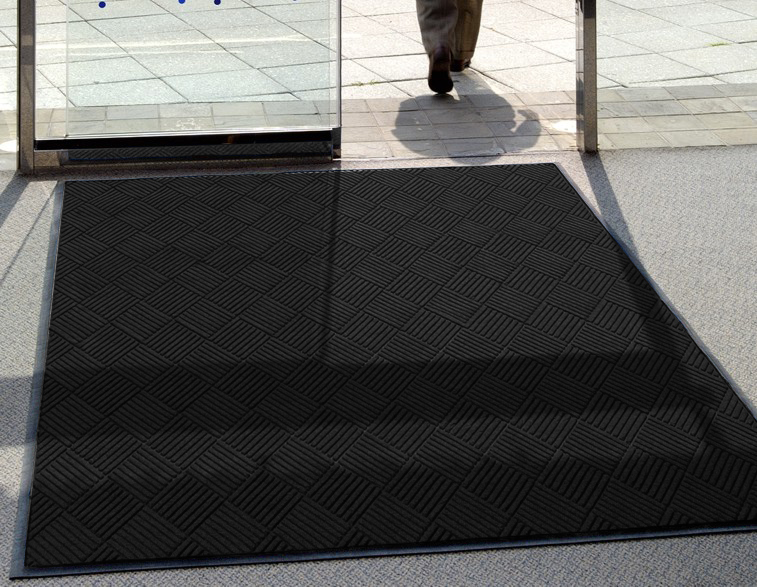

Recommended for indoor/outdoor use at commercial entrances. Excellent for hotels, retail, restaurants, offices, schools and universities, commercial buildings and more.
Standard Sizes
2' x 3' (24" x 35")
3' x 4' (35" x 46")
3' x 5' (35" x 59")
3' x 6' (35" x 70")
3' x 8.4' (35" x 101")
3' x 10' (35" x 118")
3' x 12.2' (35" x 147")
3' x 16' (35" x 193")
3' x 20' (35" x 239")
4' x 6' (45" x 70")
4' x 8.4' (45" x 101")
4' x 10' (45" x 118")
4' x 12.2' (45" x 147")
4' x 16' (45" x 193")
4' x 20' (45" x 239")
6' x 6' (71" x 71")
6' x 8.4' (71" x 101")
6' x 12.2' (71" x 147")
6' x 16' (71" x 193")
6' x 20' (71" x 239")
Special Sizes
3' x 23.8' (35" x 281")
3' x 27' (35" x 326")
3' x 31' (35" x 371")
3' x 35' (35" x 416")
3' x 38.5' (35" x 462")
3' x 42' (35" x 507")
3' x 46' (35" x 552")
3' x 50' (35" x 598")
3' x 53.5' (35" x 643")
3' x 57' (35" x 688")
3' x 61' (35" x 733")
4' x 23.8' (45" x 281")
4' x 27' (45" x 326")
4' x 31' (45" x 371")
4' x 35' (45" x 416")
4' x 38.5' (45" x 462")
4' x 42' (45" x 507")
4' x 46' (45" x 552")
4' x 50' (45" x 598")
4' x 53.5' (45" x 643")
4' x 57' (45" x 688")
4' x 61' (45" x 733")
6' x 23.8' (71" x 281")
6' x 27' (71" x 326")
6' x 31' (71" x 371")
6' x 35' (71" x 416")
6' x 38.5' (71" x 462")
6' x 42' (71" x 507")
6' x 46' (71" x 552")
6' x 50' (71" x 598")
6' x 53.5' (71" x 643")
6' x 57' (71" x 688")
6' x 61' (71" x 733")
Solid red is available in 3' and 4' widths only (no 6' widths).
Mats up to 40' are available with smooth and universal cleated backing options.
Mats over 40' are available in smooth backing only.
Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.
SURFACE
Material: Solution-dyed PET (polyethylene terephthalate); may contain up to 3% latex.
Weight: 24 ounces/yard2
Construction: Needle-punched
Design: Diamond
BACKING OPTIONS
Material: SBR rubber - smooth or universal cleated
Thickness: 78-mil (body thickness 78-mil; border thickness 143-mil)
OVERALL MAT THICKNESS: 3/8 inch (0.375")
STANDARDS & TESTING
- Passes flammability standard CPSC FF 1-70.
- Certified high-traction by the National Floor Institute (NFSI).
WaterHog Diamond mats can be cleaned using the following instructions:
- Vacuum regularly (daily in high-traffic commercial areas; weekly in lower-traffic areas).
- Extract or hose off as needed to remove heavy soil/debris
- Hang mat to dry
Always make sure the mat is dry before placing it back in service.
