WaterHog Impressions HD® Logo Mat

Product Number 2381 (classic border), 2380 (fashion border)

Being named the "World's Most Disrespected Mat" doesn't mean it can't be a branding booster. In fact, a genuine WaterHog will last longer and showcase your brand brilliantly, regardless of beating it takes at your doors.


  • WaterHog Inlay mats uniquely feature your logo inlaid with razor-sharp precision.
  • During the inlay process, the area that will display your logo is cut from the mat and appropriate colors are inlaid in the cut-out, much like a jigsaw puzzle.
  • Receiving the same benefits of a standard WaterHog mat, they feature a bi-level surface, scraping dirt and moisture from shoes, trapping it beneath shoe level to prevent tracking.
  • The water dam border contains up to 1.5 gallons of water, keeping it off your floors.

Recommended for indoor/outdoor use at commercial entrances. Excellent branding for hotels, retail, restaurants, offices, schools and universities, commercial buildings and more.

2' x 3' (23" x 35")
3' x 4' (35" x 46")
3' x 5' (35" x 59")
3' x 10' (35" x 118")
3' x 12' (35" x 144")
3' x 16" (35" x 192")
3' x 20' (35" x 239")
4' x 6' (45" x 69")
4' x 8' (45" x 97")
6' x 8' (71" x 97")
6' x 10' (71" x 124")
6' x 12' (71" x 147")
6' x 16' (71" x 196")
6' x 20' (71" x 245")

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Material: PET (polyethylene terephthalate) with 85% recycled content
Weight: 30 ounces/yard2
Construction: Needle-punched
Design: Squares

BACKING OPTIONS
Material: Nitrile rubber - smooth or universal cleated
Thickness: 65-mil (body thickness 65-mil; border thickness 155-mil)

Overall Thickness: 3/8 inch (0.375")

STANDARDS & TESTING

  • Passes DOC-FF1-70 for the surface flammability of carpets
  • Certified high-traction by the National Floor Safety Institute (NFSI)

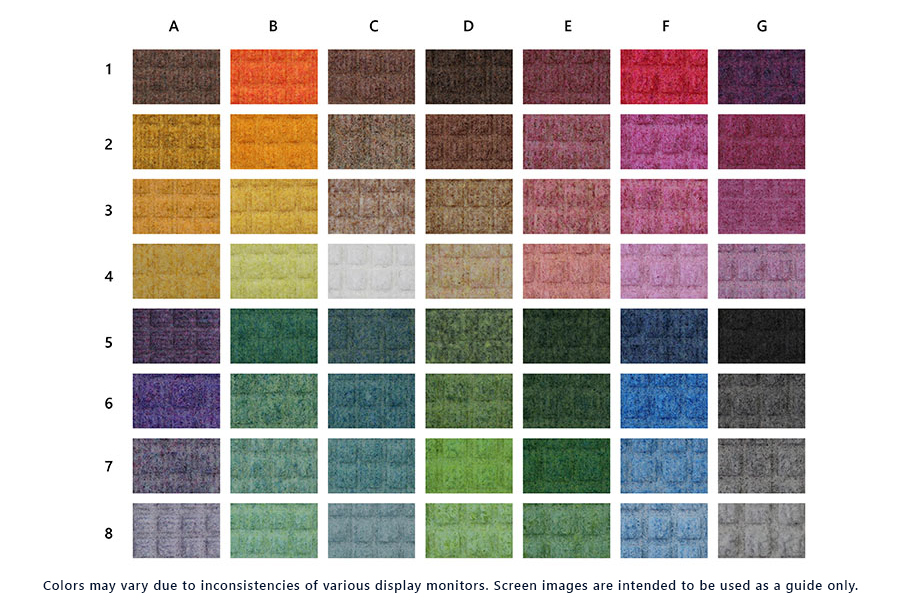

WaterHog Impressions HD logo mats are produced using a layering process of color. Colors are matched to our standard pallet of 56 colors.

Minimum Text Height: 1.5"
Minimum Line Thickness: 1/4"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Light background colors should be avoided due to their tendency to show dirt on the mat more than a darker or neutral tone.  Tints, screens, and transparencies are not supported and should not be used.

Mat Size                         Max. Imprint Classic     Fashion
2' x 3' (23" x 35")              17" x 29"                      15" x 27"
3' x 4' (35" x 46")               29" x 40"                        27" x 38"
3' x 5' (35" x 59")               29" x 53"                        27" x 51"
3' x 10' (35" x 118")         29" x 112"                   27" x 110"
3' x 12" (35" x 144")        29" x 138"                    27" x 136"
3' x 16' (35" x 192")         29" x 186"                     27" x 184"
3' x 20' (35" x 239")          29" x 233"                     27" x 231"
4' x 6' (45" x 69")              39" x 63"                        37" x 61"
4' x 8' (45" x 97")              39" x 91"                       37" x 89"
6' x 8' (71" x 97")              65" x 91"                         63" x 89"
6' x 10' (71" x 124")          65" x 118"                     63" x 116"
6' x 12' (71" x 147")          65" x 141"                     63" x 139"
6' x 16' (71" x 196")          65" x 190"                      63" x 188"
6' x 20' (71" x 245")           65" x 239"                       63" x 237"

WaterHog Impressions HD mats can be commercially laundered (see Laundering Instructions) or cleaned using the instructions below:

  • Vacuum regularly (daily in high-traffic commercial areas; weekly in lower-traffic areas)
  • Extract or hose off as needed to remove heavy soil/debris
  • Hang mats to dry

Always make sure the mat is dry before placing it back in service.

Please note that only WaterHog Impressions HD mats with a classic rubber border are launderable.  Mats with a fashion fabric border should not be laundered.

To commercially launder your WaterHog Impressions HD mat, please follow the instructions below. This formula does not require drying, however the mats can be dried if necessary.

  1. Flush 2-3 minutes, high water level, 120 degrees F (49 degrees C)
  2. Break 5 minutes, high water level, 120 degrees F (49 degrees C)
  3. Rinse 2 minutes, high water level, 120 degrees F (49 degrees C)
  4. Rinse 2 minutes, high water level, 120 degrees F (49 degrees C)
  5. Extract (low speed) 2 minutes
  6. Shake out (rotate wheel at wash speed with drain open) 1 minute
  7. Extract (high speed max - 250 Gs) 3-5 minutes
  8. Lay mats flat following removal from washer.

If you dry mats in the dryer, allow to cool before rolling.
