MatShield Grid System

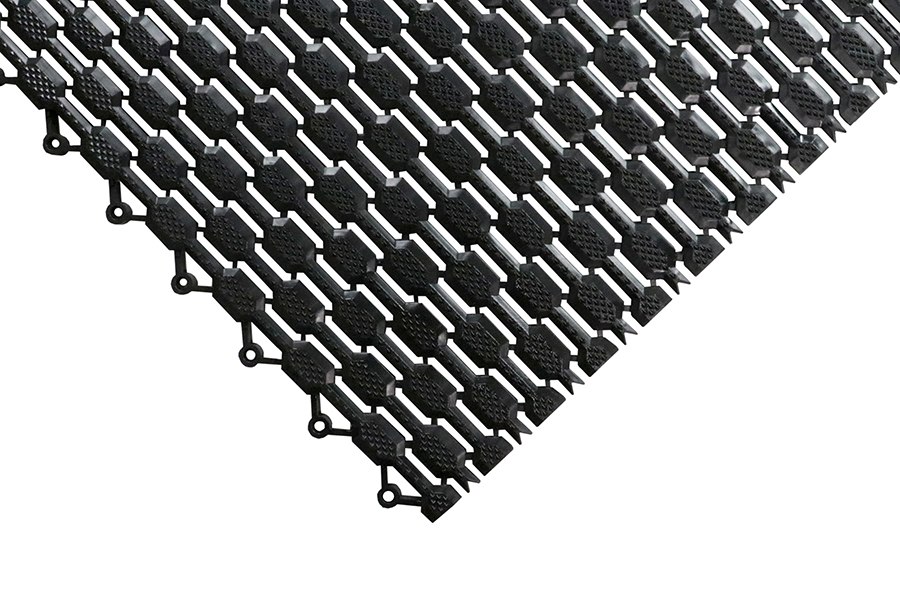

Product Number 70024 (Diamond Grid), 70023 (Heavy Duty Grid), 70021 (Heavy Duty Grid with Carpet)

Premium tile grid entryway systems designed to aggressively trap dirt, debris, and moisture while offering customizable sizing, easy maintenance, and versatile options for specific floor protection needs.


  • MatShield is a cost-effective grid entrance system.
  • The non-directional surface aggressively scrapes and traps dirt, debris, ice, salt, and moisture from shoes and wheels.
  • The non-directional design also allows customization for virtually any size area and easy rotation or replacement for maximum tile wear and low operating costs.
  • MatShield can be installed in a recessed area or floor-mounted with aluminum ramp edging, allowing a smooth transition from floor to grid.

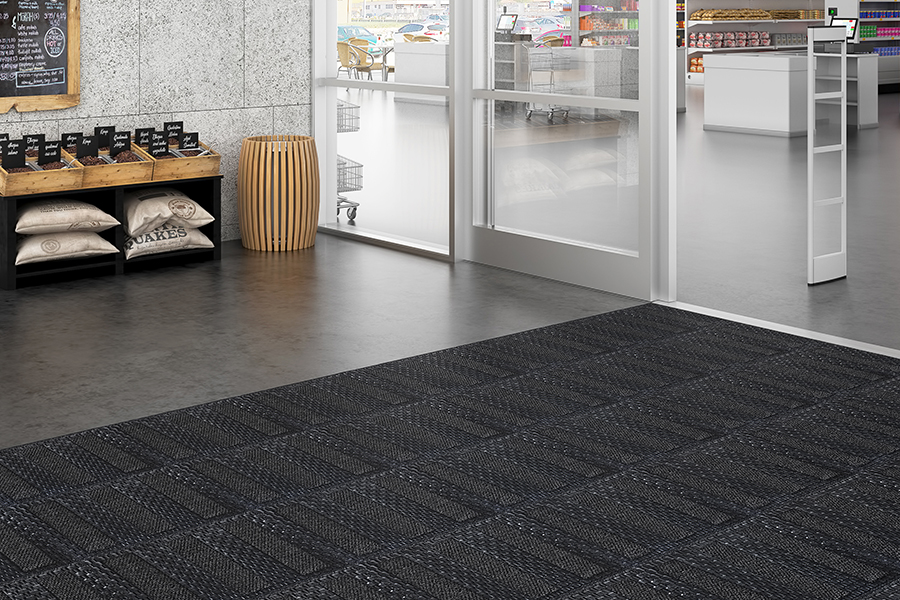

Recommended for use in entranceways. Can be installed in a recessed area or floor-mounted with aluminum ramp edging.

18" x 18"

      MatShield & MatShield Diamond   16 tiles/case

                                                             16 long floor clips

                                                             16 short floor clips

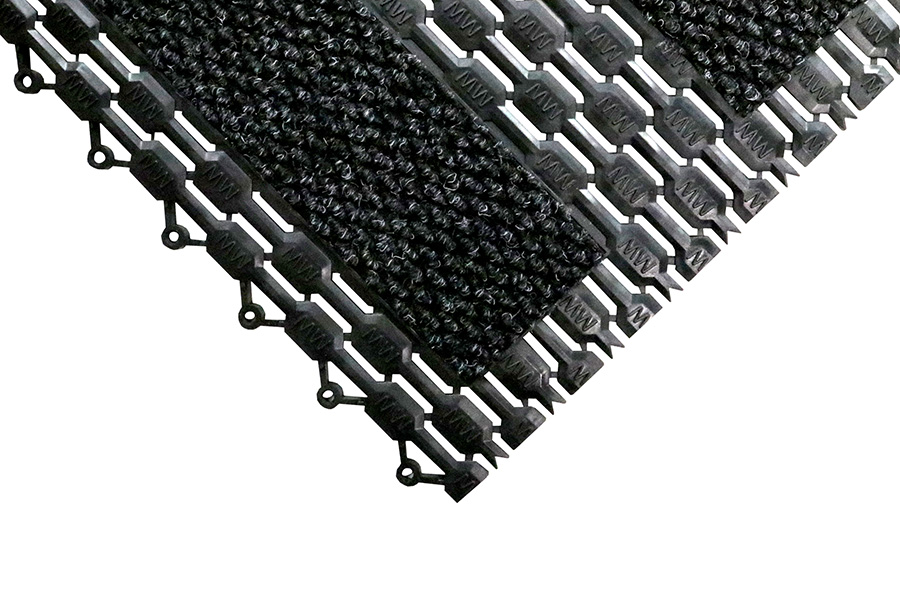

      MatShield with carpet                     13 tiles/case

                                                              13 long floor clips

                                                              13 short floor clips

?CONSTRUCTION
Material: PVC (MatShield & MatShield Diamond)

                PVC and Fiber (MatShield with carpet)

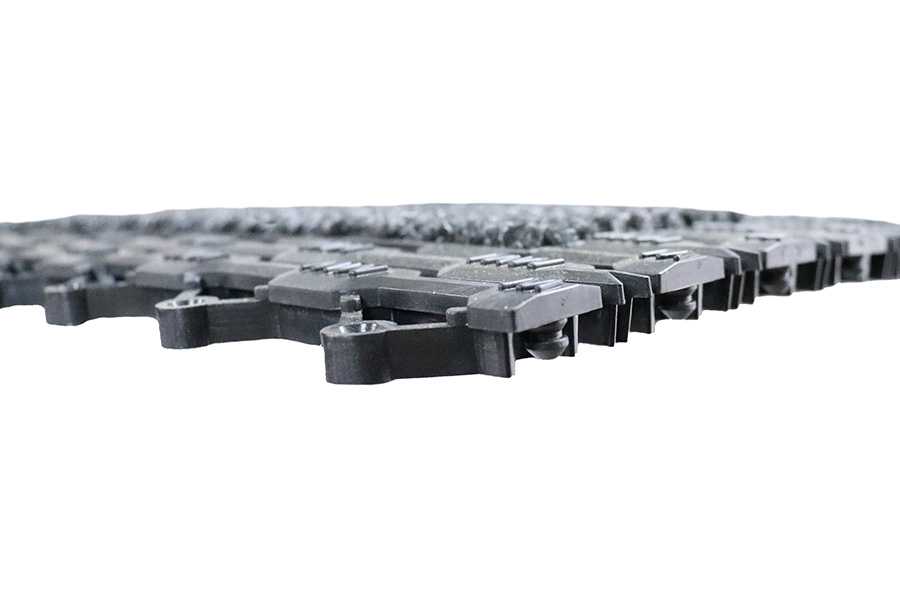

Installation: Interlocking

Thickness: 1/2 inch (0.5")

Suggested Service Temperature:  5°F to 140°F

Matworks strongly recommends cleaning your flooring system daily to maintain functionality and appearance. The maintenance schedule should start on the installation date to achieve the maximum life expectancy of the product.

DAILY CLEANING:  Use a shop vac on the surface, followed by a damp mop or deck brush using a detergent with a neutral pH.

CARPET SURFACES: Vacuum daily with a commercial-grade carpet extractor or vacuum cleaner with a rotary power brush or beater bar.

QUARTERLY MAINTENANCE:  Lift the matting section from the frame containment as a whole or by the panel to thoroughly clean any trapped dirt or moisture underneath. Vacuum all areas under the grid. Some grids will need to be hosed down or power washed to remove the hardened dirt, salt, or sand. Reinstall the grid system. Based on store traffic or environmental conditions such as increased salt, sand, and dirt, up to six times a year may be necessary.
